Dipoflex
Dipole and Grounding Cable

SELECT AN AVAILABLE OPTION
Choose Length
Availability: delivered in 2-4 days
Calculate shipping costs
(Unit Price)
€ 42,00
(Tax free)
-
+

...........................................................................

The DIPOFLEX cable is the best solution for the construction of dipole antennas. The 1.25- Sq mm.  conductor ensures excellent conductivity at all frequencies, as opposed to the wires in CCS that due to the skin effect, have a poor conductivity at low frequencies. The mechanical seal is guar-anteed by the strong and flexible rope composed by 19 copper wires. The sheath of polyethylene with anti-UV additives in the compound, ensures a long life even under extreme conditions.



Dipole antenna wire, made of pure copper geometrically stranded.

Conductor: Copper 19 X 0,29mm (19 X 0.011 in)

Diameter: 1,45 mm (0.057 in)

Section: 1,25 sq.mm (0.0019 in2)

Electrical resistance: 15 Ohm/Km (4.6 Ohm/1000ft)

Max. applicable Power = 4000W

Sheath: PE black with UV filter

Diameter: 3.1 mm (0.122 in)

Tear resistance: 45 Kg (99.2 lb)

Velocity Factor: VF = 1 (299.792 Km/S)

Weight: 1,338 Kg/100m (2.95 lb/100ft)

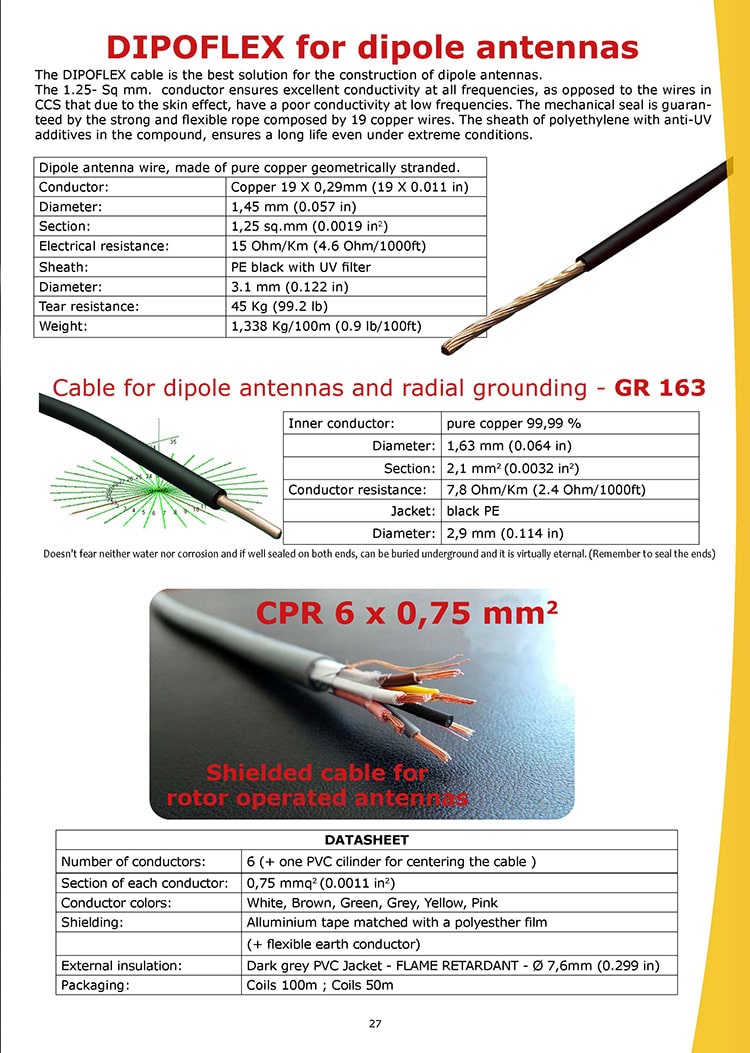

Datasheet
