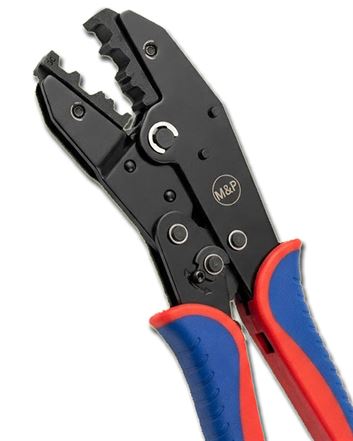

Crimping Tool for 50 Ohm Connectors

CONNECTORS CRIMPING GUIDE

SMA Connector for 5mm Cables (Code: C.SMA.AC5M-CR)

Pin = .043 hole | Body = .213 hole

SMA Connector for 5.4mm Cables (Code: C.SMA.HYF5M-CR)

Pin = .068 hole | Body = .256 hole

SMA Connector for 7.3mm Cables (Code: C.SMA.AC7M-CR)

Pin = .100 hole | Body = .295 hole

BNC Connector for 5mm Cables (Code: C.BNC.RG8M-CR)

Pin = .068 hole | Body = .213 hole

BNC Connector for 5.4mm Cables (Code: C.BNC.HYF5M-C)

Pin = .068 hole | Body = .256 hole

BNC Connector for 7.3mm Cables (Code: C.BNC.AC7M-CR)

Pin = .100 hole | Body = .321 hole

TNC Connector for 5.4mm Cables (Code: C.TNC.HYF5M-C)

Pin = .068 hole | Body = .256 hole

TNC Connector for 7.3mm Cables (Code: C.TNC.AC7M-CR)

Pin = .100 hole | Body = .295 hole

TNC Connector for 10mm Cables (Code: C.TNC.BROAD50-CR)

Pin = .128 hole | Body = .429 bore

N-type connector for 7.3mm cables (Code: C.N.AC7M-CR)

Pin = .100 bore | Body = .321 bore

N-type connector for 10.3mm cables (Code: C.N.BROAD50-MCR)

Pin = .128 bore | Body = .429 bore

N-type female connector for 10.3mm cables (Code: C.N.BROAD50-FCR)

Pin = .128 bore | Body = .429 bore

The product includes a crimping tool and 2 interchangeable dies, to be used according to the type of cable and connector.
